Humidifiers offered comprises unbreakable jar finish
that comes with screw on cap that is fitted on side outlet tubes as well
as on top inlet. These inlet tube ends in diffuser where oxygen is bubbled
through water before reaching outlet point. The different options offered
here include 3013 - Humidifier with S Hook that supports
hanging on cylinder trolley/flowmeter unit, 3050 - Humidifier - screw on
type that comes with metal inlet, 3012 - Humidifier - screw on type that
features use of plastic inlet with 1/2 BSF threads that allows
direct screwing to outlet of flowmeter, 3051 - Humidifier - for generator
which comes with metal inlet option and 3040 - Humidifier - for generator
which features plastic inlet for use with Oxygen Generator / Amar Oxygen
Regulator. For superior functioning, these also come with 9/16 UNF female
knurled nut and nipple at inlet.
|Model No.||Volume Range|
|3013||Humidifier with S Hook that provides for hanging on cylinder trolley/flowmeter unit|
|3050||Humidifier - screw on type with metal inlet provision|
|3012||Humidifier - screw on type with plastic inlet provision featuring 1/2 BSF threads that allows direct screwing to flowmeter outlet|
|3051||Humidifier - for generator comes with metal inlet provision|
|3040||Humidifier - for generator comes with plastic inlet that allows use with Oxygen Generator/Amar Oxygen Regulator|
|Featuring use of 9/16 UNF female knurled nut as well as nipple at inlet|
Fine Adjustment Valve offered comes with Gauge &
Flowmeter support with the complete set comprising Gauge Saver (3115), F/A
Valve with Gauge (3005), Flowmeter (3007). This specially designed unit
helps in reducing cylinder pressure by providing variable restriction to
flow of Oxygen from cylinder outlet. Further, with the reduction in volume
of oxygen present in cylinder, flowmeter needs to be adjusted accordingly
to maintain required flowrate. We also offer flowmeter unit without
control that comes fitted with jacketed type shatter proof tubes which are
calibrated from 0-15ltrs/min.
Note: Flowmeter without control which are used in F/A Valve should not be used with Oxygen Regulator.
Oxygen Nasal Cannula offered is made available by us
in disposable finish with its U shaped molding with limbs
ensuring maximum comfort to the patients when inserted into nostrils.
Further, these are also light in weight and also feature use of nasal tips
to provide for comfortable fit for efficient oxygen therapy. We offer
these with 2 meters tubing in different finish options so as to find
suitability amongst 3014 Adult, 3015 Child and 3016
Oxygen Mask Plain offered is made available by us in
disposable finish option. These masks are light in weight and come with
soft edges that allows for enhanced patients comfort. Further, these
are also made available with provision of nose clip to meet the
requirement of nose bridge adjustment as well as for allowing better fit.
The presence of pull through adjustable elastic head band as well as
swivel tubing connector also allows for easy changing of angle of
operation without need to disturb mask. The options offered by us here
include 3017 Adult and 3018 Child.
Oxygen Mask with % control offered comprises one piece
construction with provision of adjustable venturi valve as well as option
of seven oxygen percentage settings including 24, 26, 28, 31, 35, 40 &
45%. These masks are specially designed for allowing setting of
concentration of oxygen to be delivered to patient as required clinically.
The use of this mask also eliminates requirement of several selector
venturi valves, thus providing reduction in time required for changing
oxygen concentrations. We offer these in options of 3020 Adult and
High Concentration Mask offered find application in
delivering 100% oxygen to the patients and comes with support functional
components including two litre reservoir bag as well as 3 one-way valves.
Further, the two expiratory valves present can also be easily detached as
per specific requirement of the patients. Also known as partial & non
re-breathing masks, these adult and pediatric high concentration masks can
provide oxygen concentrations of up to 80% at flowrate of 10 to 15 l/min
with the values determined on patients breathing pattern. The
options we make these available in include 3037 Adult and 3038

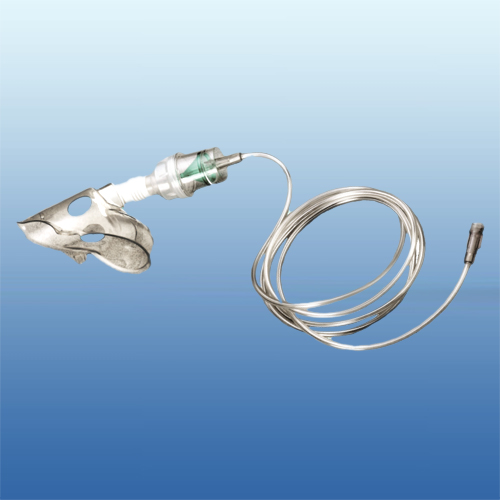

Oxygen Mask with Nebuliser is a disposable type of
oxygen mask that comes with nebulizer support. The complete set comprises
plain oxygen mask, nebulizer jar and tubing which provide optimum
functioning for delivery of drugs for tracheobronchial deposition.
Further, these can handle gas flow of 8 L/min with 70% of output being
particles of less than 5 micron in size. Made from clear, medical-grade
PVC, these also feature use of adjustable nasal clip as well as nebulizer
chamber. Further, these also feature easy fit seal thus allowing for
complete patient comfort. The options offered here include 3031
Adult and 3032 Child.
