Home » Anaesthesia Apparatus & Accessories

Anaesthesia Apparatus & Accessories

Anesthesia Apparatus & Accessories offered are known for delivering precision functionality in involved medical procedures. Here, we ensure these matches up to the industry standards and feature innovative design standards which make these easy to use as well as also deliver longer service life standards. We can make these available in different finish specifications so as to precision accommodate different operating procedures. The range offered by us under this category include Rotameter Units, Stainless Steel Yokes, Emergency Oxygen Units, Oxygen Failure Alarm, Goldman Halothane Vaporizer, Change Over Units, Preset Regulators, Cut off Regulators, Cylinder Conversion Units - Oxygen and Cylinder Conversion Units - Nitrous Oxide.

» Rotameter Units

Rotameter Units offered are made available by us in different finish specifications to choose from. The range includes Rotameter Unit (without tubes) where the differential pressure ‘P’ is created in main flow through Orifice plate in main pipeline that creates branch of flow moving through By-Pass line provided across orifice plate from upstream side to downstream side of Orifice Plate. Further, additional Orifice plate is also provided in By-Pass line designed in a way that creates flow through Orifice plate flows in proportion with flow through main orifice plate, thus allowing measurement of flow from By Pass line as well as allowing estimation of flow from main pipe line. Other than this, we also offer Rotameter Tube & Bobbin that comprises dual tapered calibrated tube at 20OC & 1013mbar abs. Further, the Bobbin Float features aluminum alloy anodized red finish with silver dot so as to provide for easy observation of rotation. Here, the operation of tubes can be confirmed through checking location of flowmeter bobbin as well as through observing rotation of the bobbin.

Specifications : Rotameter Unit (Without Tubes) :
Model No. Volume Range
3700 Accommodates one 230mm tube
3600 Accommodates two 230mm tube
3500 Accommodates three 230mm tube

Rotameter Tube & Bobbin:
Model No. Volume Range
3601 Oxygen 0.1 to 10.0 ltr/min,100 to 10000 cc/min
3602 Nitrous Oxide 0.2 to 12.0 ltr/min , 200 to 12000 cc/min
3612 Air 0.1 to 12.0 ltr/min , 100 to 12000 cc/min
3613 Oxygen 0 to 1.0 ltr/min , 0 to 1000 cc/min


» Stainless Steel Yokes

Stainless Steel Yokes offered are made available by us in different finish models so as to precisely match up to the demands of the customers. The range includes Yoke - Economy Model which are made available in options of 3652 - Oxygen and 3653 - Nitrous Oxide finish. These are made available in color coded plastic cover with other support components featuring stainless steel finish so as to avoid rusting. It is also pin indexed for use on anesthesia trolley. Other than this, Yoke - Compact Model offered is available in two models - 3650 - Oxygen and 3651 - Nitrous Oxide. The construction includes single piece brass chromed finish that is pin indexed for use on anesthesia trolley. Apart from these, one another model being offered includes Yoke – Midget that finds application in ambulances, mines, domiciliary use, airports, medical disaster situations, railways and other areas. These are available in range including 3654 - Oxygen for use with F. A. Valve, 3655 - Nitrous Oxide and 3656 - Oxygen for use with Rao’s Regulator.

Specifications : Yoke - Economy Model :
Model No. Volume Range
3652 Oxygen
3653 Nitrous Oxide

Yoke - Compact Model :
Model No. Volume Range
3650 Oxygen
3651 Nitrous Oxide

Yoke – Midget :
Model No. Volume Range
3654 Oxygen for use with F. A. Valve
3655 Nitrous Oxide
3656 Oxygen for use with Rao’s Regulator

Applications :
  • Domiciliary use
  • Ambulances
  • Mines
  • Airports
  • Railways
  • Medical disaster situations


» Emergancy Oxygen Units

Emergency Oxygen Units offered comprise an important accessory that finds usage in Gas Anesthesia Equipment. The range includes non-return valves assembly with button that allows for flushing circuit with oxygen in emergencies. Here, we ensure these feature precision design and construction standards so as to deliver optimum functional support in given applications. Further, we also constantly upgrade the base models of the product so as to ensure these best match with the procedure as well as provide ease of usage.

Features:
  • Precision designed range of Emergency Oxygen Units
  • Used as an important accessory used in Gas Anesthesia Equipment
  • Incorporates non-return valves assembly
  • Also features button for flushing circuit with oxygen

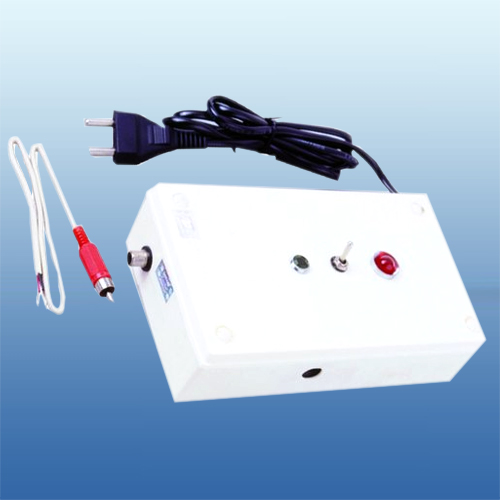

» Oxygen Failure Alarm

Oxygen Failure Alarm offered comprises precision designed and constructed range of O2 Failure Alarms for gas used in Anesthesia Apparatus. Providing functionality support as a battery operated controlled device, the offered alarm system is used in analyzing oxygen pressure and works as pneumatically controlled device that activates audio alarm for around fifteen seconds of time duration in cases where oxygen pressure in system falls to approximately 4.2kg/cm2.

Features:
  • Precision designed range of Oxygen Failure Alarms
  • Used for gas used in Anesthesia apparatus
  • Battery operated controlled device used in analyzing oxygen pressure
  • Battery operated pneumatically controlled device that activates audio alarm for around fifteen seconds in cases where oxygen pressure in system falls to approximately 4.2kg/cm2
