Item Code : 3301 / 3302
Making & breaking the supply connection is in the same manner as described under "Self Sealing Valves"
The outlet points from which gases & vacuum are drawn are
of self sealing type and have non-interchangeable outlet fittings. The
supply is established simply by inserting the appropriate safety key plug
into the orifice of the outlet point and pressing it home until it locks
in position. To break the connection, the milled collar round the orifice
is rotated a few degrees to the right, when the safety key plug is
automatically ejected and the gas flow is cut off.
|Model No.||Type of Gas used for|
These are non-interchangeable like the self sealing valves and
thus eliminate the possibility of errors in making connections.
|Model No.||Type of Gas used for|
The contact gauge has electrical contacts. It should be
connected to the pipeline gas failure alarm which has two signal lights, a
buzzer & an "ON/OFF" switch. When the contact gauge is
connected to the power supply and the ON/OFF switch of the alarm is
switched "ON", green light will show indicating that the
electrical supply serving the contact gauge & alarm are working
correctly. The green light should show at all times when the pipeline is
in use. The other signal light viz red is a warning light which
automatically shows & the buzzer rings when the pressure in the
running cylinder has fallen to a determined value. Put the switch to "OFF"
position after which the reserve cylinder should be brought into operation
promptly to ensure continuity of supply.
|3324||0 - 250kg/cm2 High Pressure, Oxygen, Dia 100mm|
|3326||0 - 10kg/cm2 Low Pressure, Oxygen, Dia 100mm|
|3350||Pipeline Gas Failure Alarm|
Rao's range of vacuum regulators represents the ultimate
in vacuum control. High (0-760mm Hg), Medium (0-500mm Hg) & Low
suction (0-200mm Hg). These cover all the medical central pipeline
applications of the operation theatres & wards. The regulator
comprises of a polymer body which houses an ON/OFF lever, an adjustable
knob at the front, a large diaphragm for accurate suction control and a
vacuum gauge with different scales depending on model 760, 500 & 200.
The ON/OFF lever allows the operator to start or stop suction by turning
the lever, with the adjustable knob, the operator can set the amount of
vacuum necessary. The medium & low volume regulators have a safety
valve set to open between 450 & 475mm Hg for medium suction and
between 150 & 175mm Hg for low suction.
|1203||0 to 760mm Hg.|
|1230||0 to 200mm Hg.|
|1220||0 to 500mm Hg.|
The basic trolley consists of a stand on four castor wheels,
very stable and provided with an easy grip handle for convenient
transportability. It is suitable for two 2000 / 4000ml capacity suction
units, a high/medium/low vacuum regulator & a safety jar fitted with
an overflow safety device.

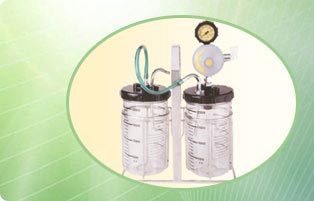

Light but sturdy, stainless steel stand to accommodate two
2000ml jars with a vacuum regulator to easily carry from one place to
another as & when required. Specially useful in operation theatres &
wards in hospitals and nursing homes.
The regulator comprises of a polymer body which houses an ON/OFF lever, an adjustable knob at the front, a large diaphragm for accurate suction control and a vacuum gauge with different scales depending on model 760, 500 & 200. The ON/OFF lever allows the operator to start or stop suction by turning the lever, with the adjustable knob, the operator can set the amount of vacuum necessary. The medium & low volume regulators have a safety valve set to open between 450 & 475mm Hg for medium suction and between 150 & 175mm Hg for low suction.
Vacuum units are available in 600, 1000, 2000 & the new
4000ml capacity. The jars are made of polycarbonate, practically
unbreakable, shatter resistant and autoclavable at 134 C. ABS is used for
other components to withstand hard usage and provide trouble free service
over a long period of time. A stainless steel bracket is provided on the
cap as a separate component and not as an integral part of the cap to
avoid the cap breaking, when the jar gets filled with suction fluids. The
bracket fits directly on the mounting bracket on the wall. A well proven
fluid control trap fitted on the unit automatically and efficiently shuts
off vacuum fully, preventing the transfer of liquid to the vacuum
regulator, pipeline and pump.
